🛰️ Project Snapshot

TEAM THE COOKIES

Compact FPV Soccer Drone Compact FPV Soccer Drone

Day la du an drone bong da nhom em lam de ket hop lap rap phan cung, in 3D, va tune bay. Drone duoc thiet ke nho gon, co vong bao ve ben ngoai, de dieu khien hon trong khong gian hep va giam hu hong khi va cham. This project combines hardware assembly, 3D printing, and flight tuning into a compact soccer drone. The design focuses on a protected outer shell, beginner-friendly control, and a small footprint that can survive closer contact than a bare racing quad.

3D Printed Frame Recycled Nylon ELRS 2.4GHz Betaflight Tuned Team Build

20 cm Duong kinh khung drone Frame diameter

200 g Nang tam uoc tinh, khong tinh pin Approx. payload target, excluding battery

5-6 min Thoi gian hoat dong moi lan bay Flight time per run

~25 min Thoi gian sac lai pin Approx. recharge time

TONG QUAN OVERVIEW

[?] Van de [?] The Problem

Drone nho de choi theo kieu bong da can vua nhe, vua ben, vua de xac dinh dau duoi khi bay. Voi mot nhom hoc sinh, bai toan khong chi la lap cho bay duoc, ma con phai giu chi phi hop ly va de sua khi co va cham. A small soccer-style drone needs to be light, durable, and easy to orient in flight. For a student team, the challenge was not just making it fly, but also keeping the build affordable, repairable, and safer during contact.

[!] Giai phap [!] The Solution

Nhom em dung SpeedyBee F405 AIO V2 lam trung tam dieu khien, dong co LANNRC 1404 Plus, ket noi ELRS 2.4GHz, khung chinh in 3D, va mot vong bao ve bong da ben ngoai. Drone duoc gan led dinh huong, dung pin Tattu 3S, va duoc tune bang Betaflight de can bang huong bay, do nhay, va do on dinh. We built around the SpeedyBee F405 AIO V2, LANNRC 1404 Plus motors, ELRS 2.4GHz control, a 3D-printed inner frame, and a protective outer soccer shell. The drone uses orientation LEDs, a Tattu 3S battery, and Betaflight tuning to improve direction control, response, and overall balance.

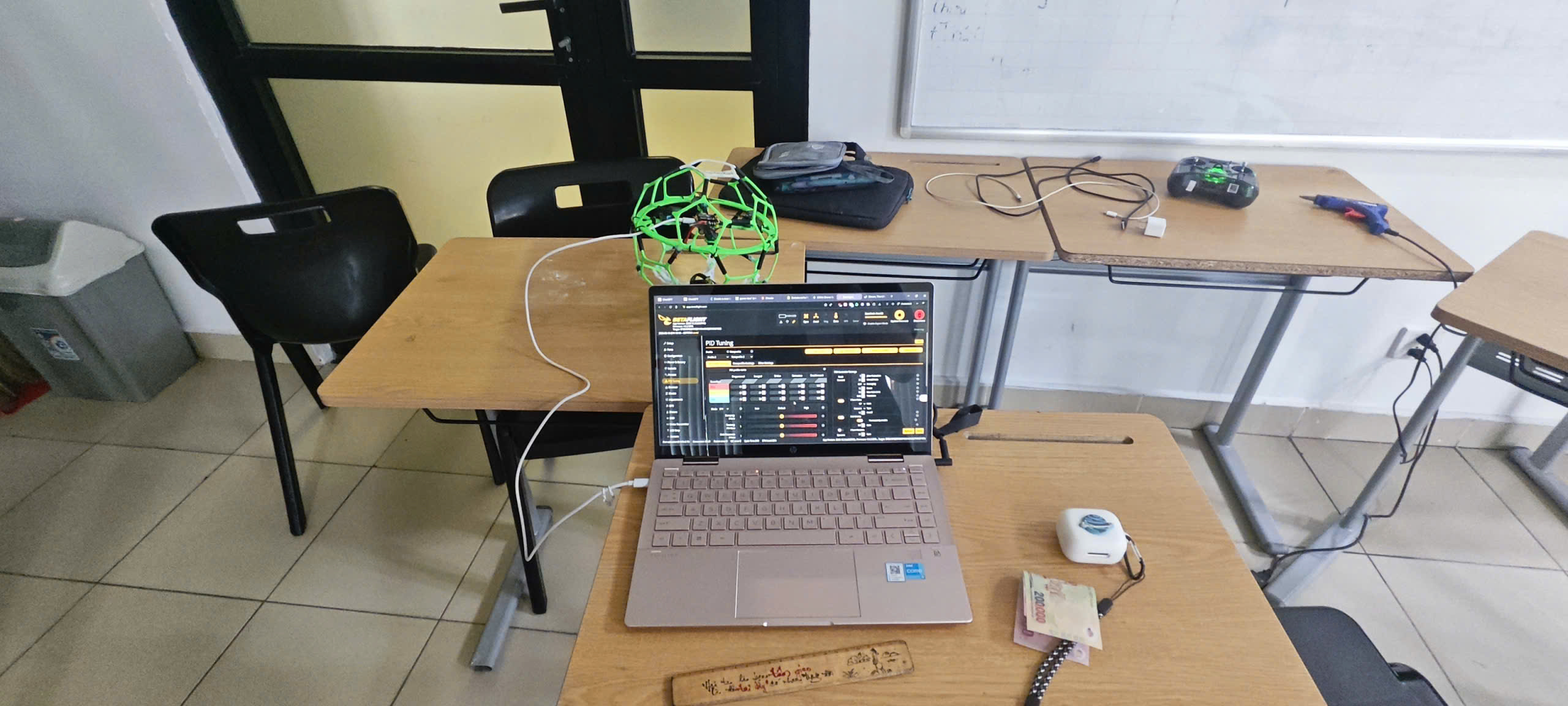

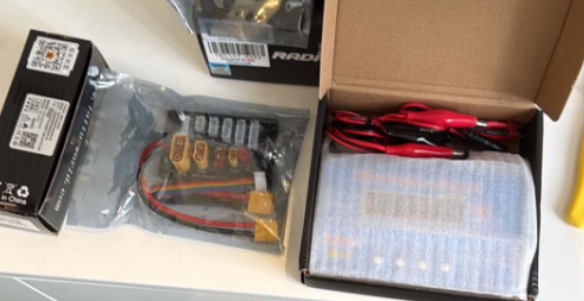

Drone parts ready for assembly on the desk

CORE HIGHLIGHTS CORE HIGHLIGHTS

HL_01

Vo bao ve bong da in 3D 3D-Printed Soccer Shell

Vong bao ve ben ngoai giup bao boc khung chinh va han che hu hong khi drone va cham vao vat can hoac mat dat. The outer soccer shell protects the inner frame and reduces damage during contact with obstacles, the ground, or other objects.

HL_02

Nhan dang dau duoi bang led LED-Based Orientation

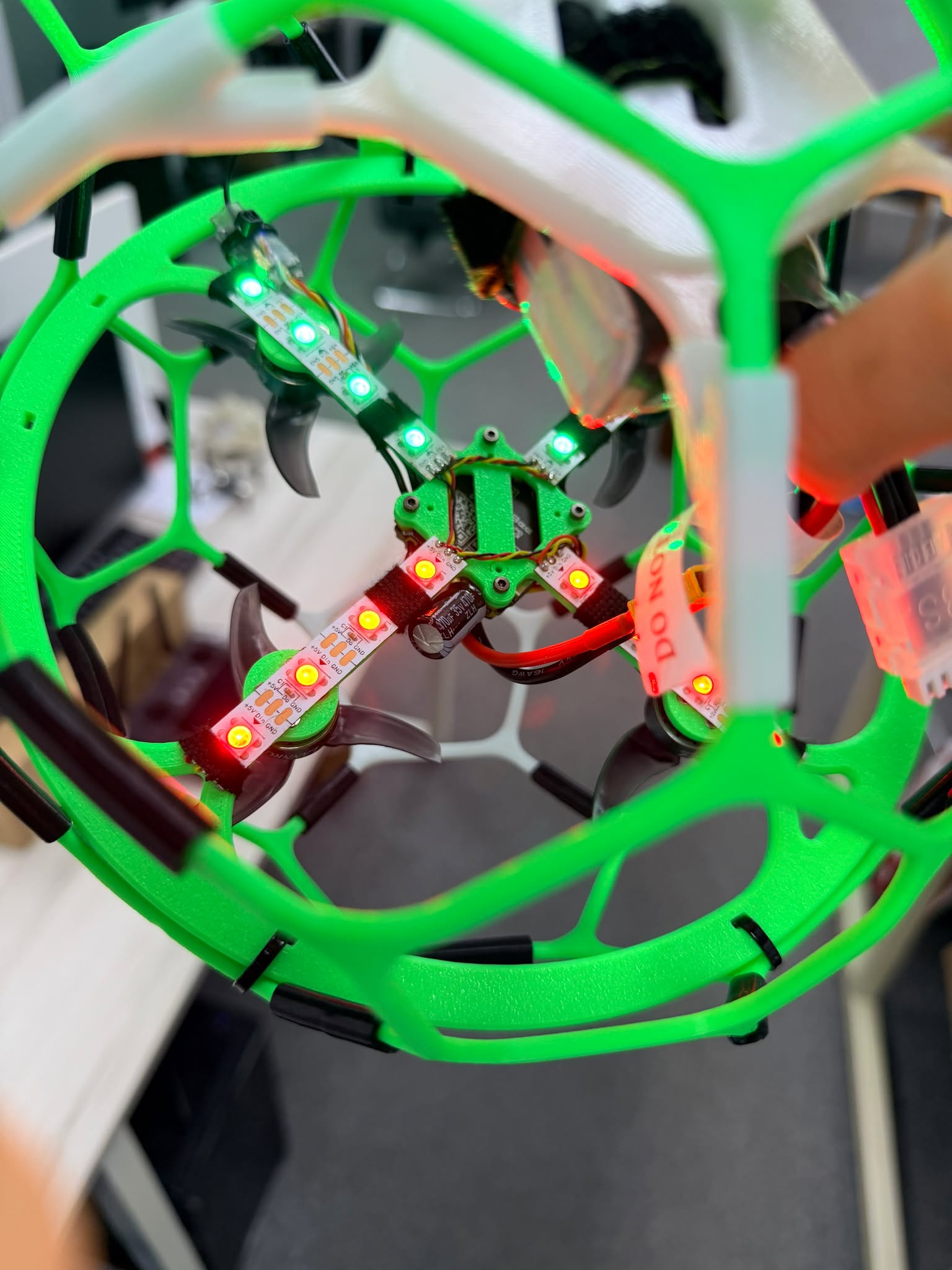

Led do dat o duoi drone va led xanh la dat o dau drone de de nhin huong bay hon trong luc dieu khien. Red LEDs at the rear and green LEDs at the front make the drone easier to orient while flying.

HL_03

Betaflight tuning Betaflight Tuning

Phan tune tap trung vao huong, do nhay, va do can bang de drone bay on dinh hon sau khi lap rap xong. Tuning focused on direction behavior, sensitivity, and balance so the quad would feel more stable after assembly.

HL_04

Kich thuoc gon cho team hoc sinh Compact Student-Friendly Build

Duong kinh 20cm giup tong the gon hon, de van chuyen, de sua, va hop voi mot du an nhom co gioi han ve ngan sach. A 20 cm frame keeps the system easier to transport, repair, and manage within a student budget.

SUSTAINABILITY ANGLE SUSTAINABILITY ANGLE

Tai che tu rac thai nhua Built from Recycled Plastic Waste

Khung in 3D duoc dinh huong theo y tuong nhua nylon tai che, co the den tu luoi danh ca cu va phe lieu cong nghiep thay vi nhua moi. The 3D-printed frame follows a recycled nylon approach, using waste streams such as old fishing nets and industrial plastic instead of fresh virgin plastic.

Giam nang luong va phat thai Lower Energy and Emissions

Theo huong trinh bay cua nhom, nhua tai che co the giam tieu thu nang luong va phat thai khi nha kinh so voi quy trinh tao nhua nguyen sinh. The recycled-material approach aims to reduce energy use and greenhouse emissions compared with producing fully virgin plastic parts.

De lam lai sau hu hong Repairable and Recyclable Again

Neu khung hong, vat lieu co the duoc nghien nho va tai su dung de in ra san pham moi, giup han che khai thac tai nguyen dau mo. If parts break, the material can be reprocessed and reused again, reducing waste and dependence on new petroleum-based plastic.

🧩 PARTS LOADOUT 🧩 PARTS LOADOUT

CORE_01

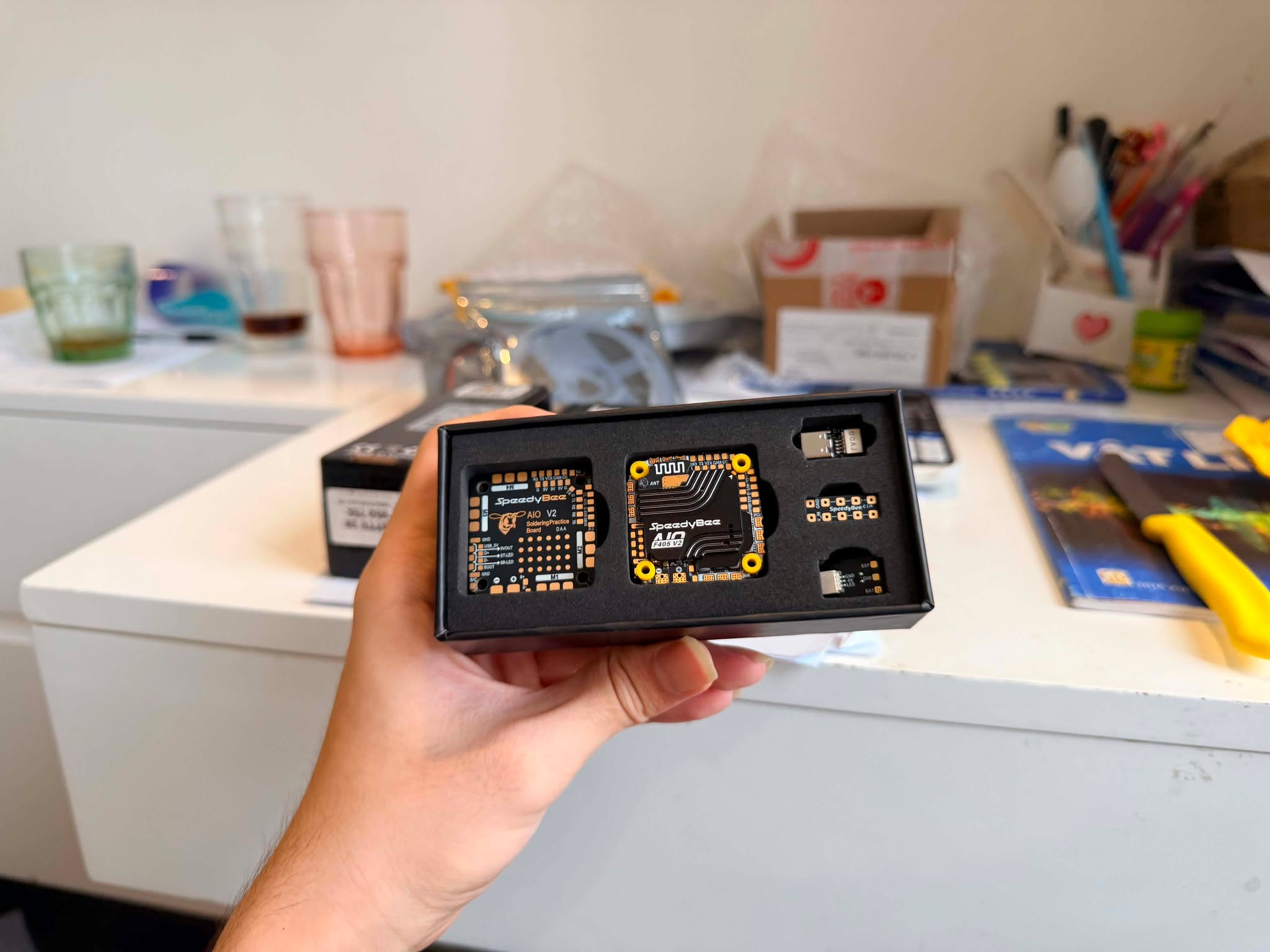

SpeedyBee F405 AIO V2

Bo dieu khien trung tam cho drone, xu ly bay va ket noi cac thanh phan chinh. The central flight core for control logic and electronic integration.

Flight Controller / AIO

CORE_02

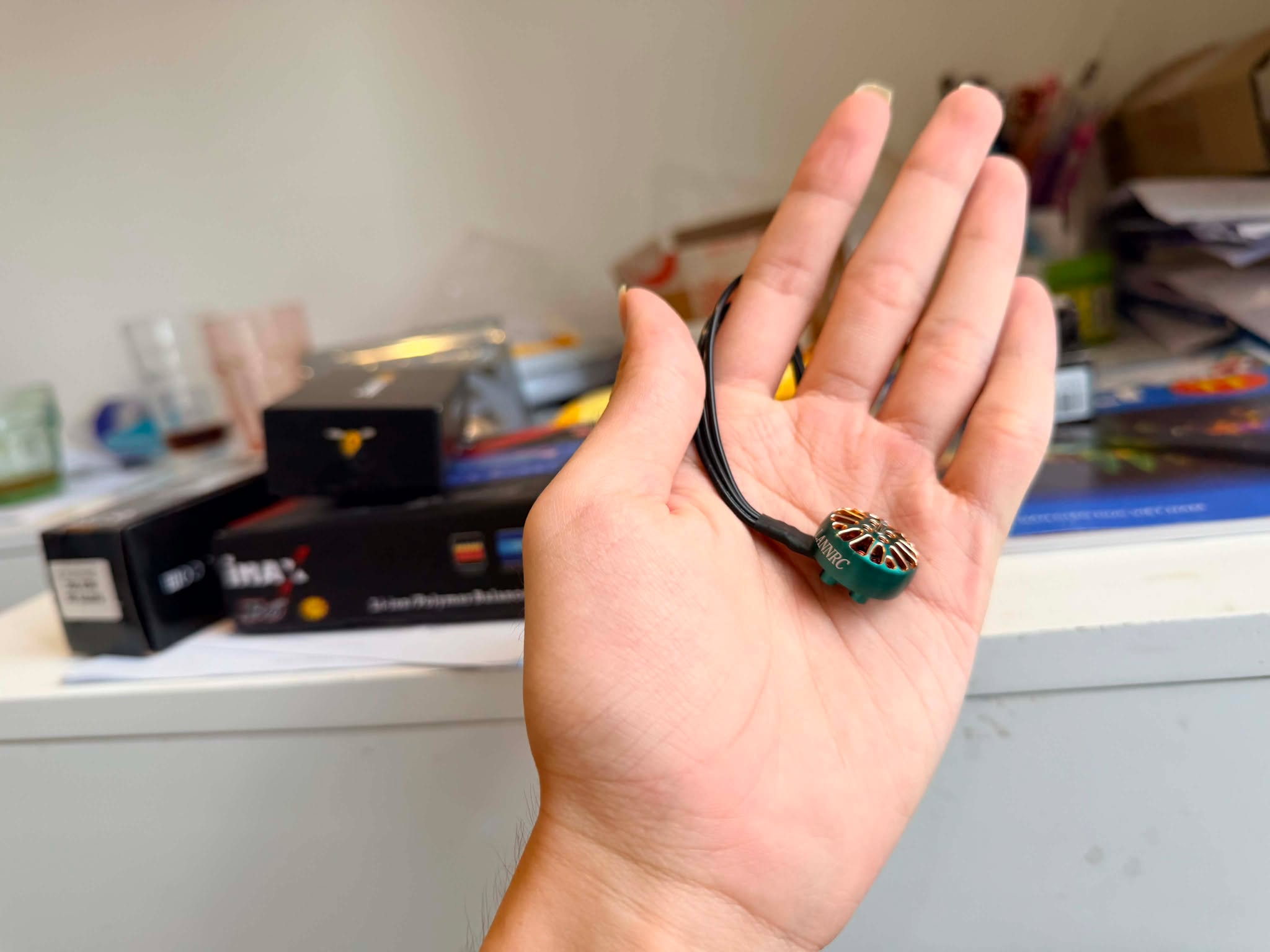

LANNRC 1404 Plus

Dong co brushless 4600KV 2-4S tao luc day cho bo khung nho gon. 4600KV 2-4S brushless motors providing thrust for the compact airframe.

Motor / 4600KV

LINK_01

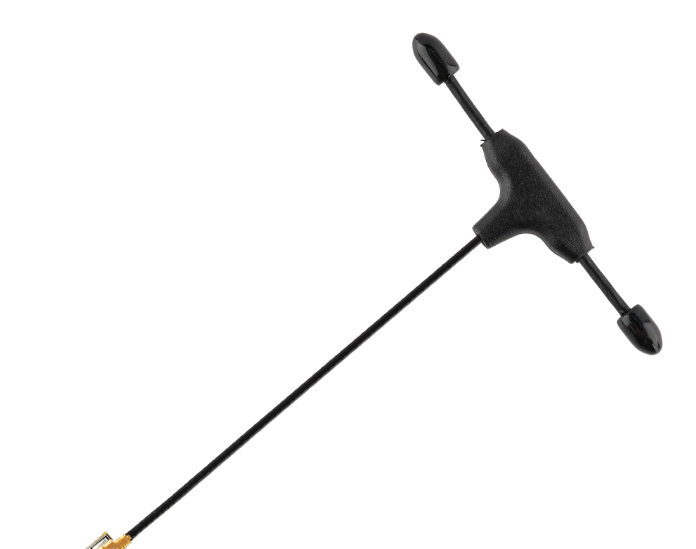

ELRS 2.4GHz Receiver

Bo thu tin hieu dieu khien tu tay cam Radiomaster. Receives low-latency control input from the Radiomaster transmitter.

Control Link

FRAME_01

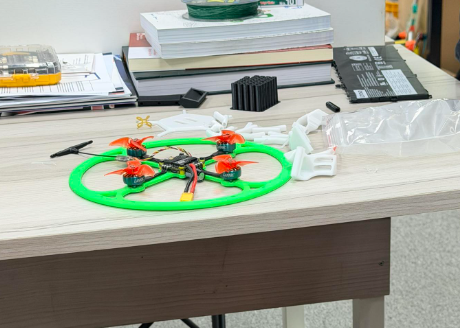

3D-Printed Main Frame

Khung chinh giu flight core, dong co, pin, va he thong day noi. The main printed structure that holds the core electronics, motors, battery, and wiring.

Inner Chassis

FRAME_02

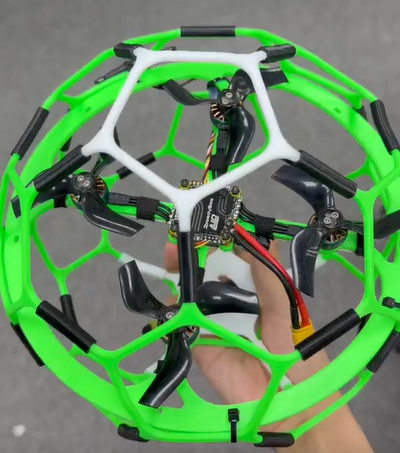

3D-Printed Outer Ring

Vong soccer ben ngoai bao ve khung chinh va giup va cham an toan hon. The outer soccer shell that protects the drone and softens contact.

Protective Shell

DRIVE_01

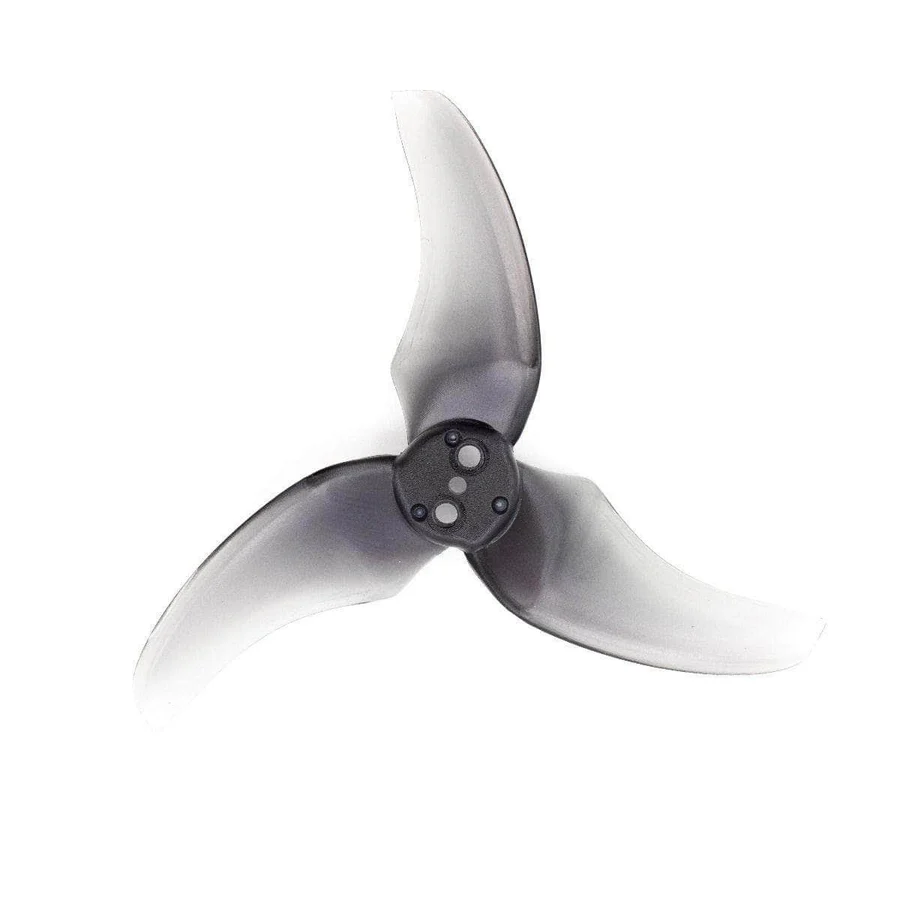

2 Pairs of 2.5" Props

Bo canh thuan nghich duoc dung sau khi team gap van de voi canh 3 inch qua lon. Counter-rotating prop pairs used after larger 3-inch props proved too large for the frame.

CW / CCW Props

POWER_01

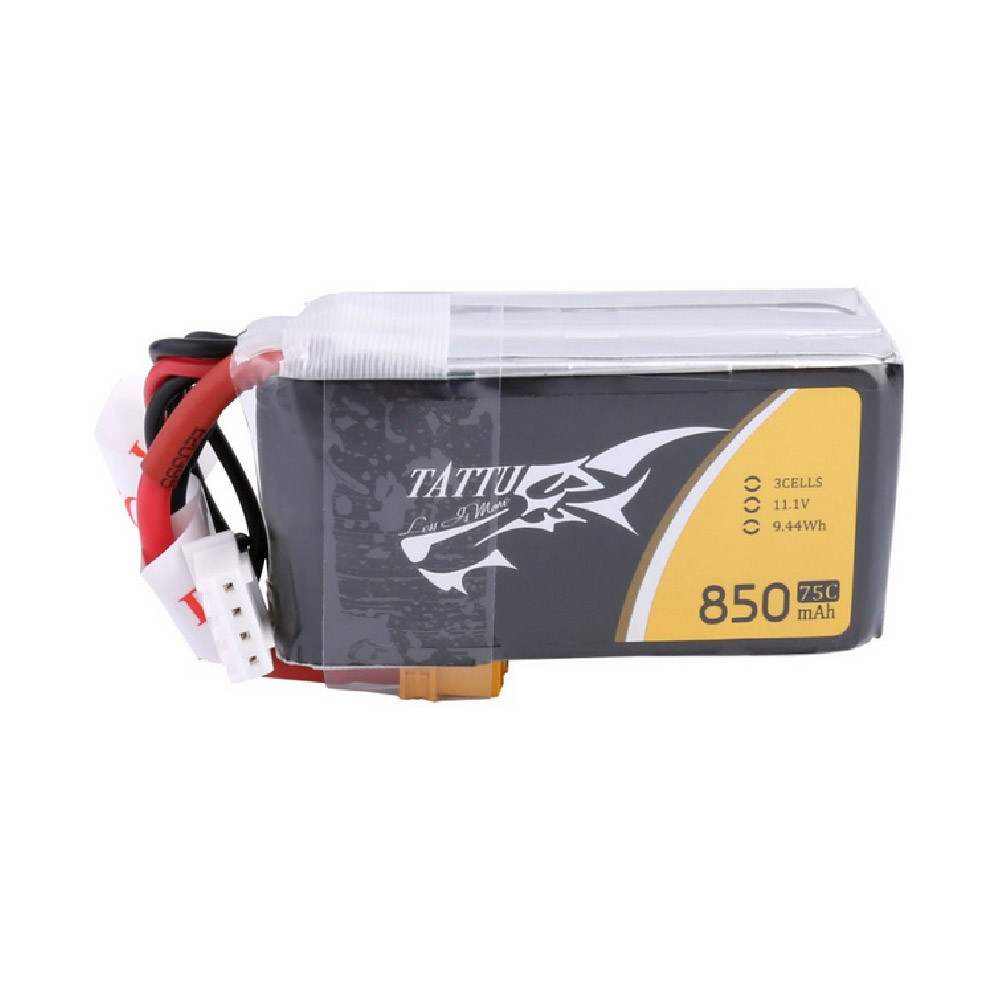

Tattu LiPo Battery

Pin 850mAh, 3S, 75C, 11.1V cap nguon cho moi lan bay ngan. 850mAh, 3S, 75C, 11.1V battery pack powering short test and match sessions.

850mAh / 3S / 75C

POWER_02

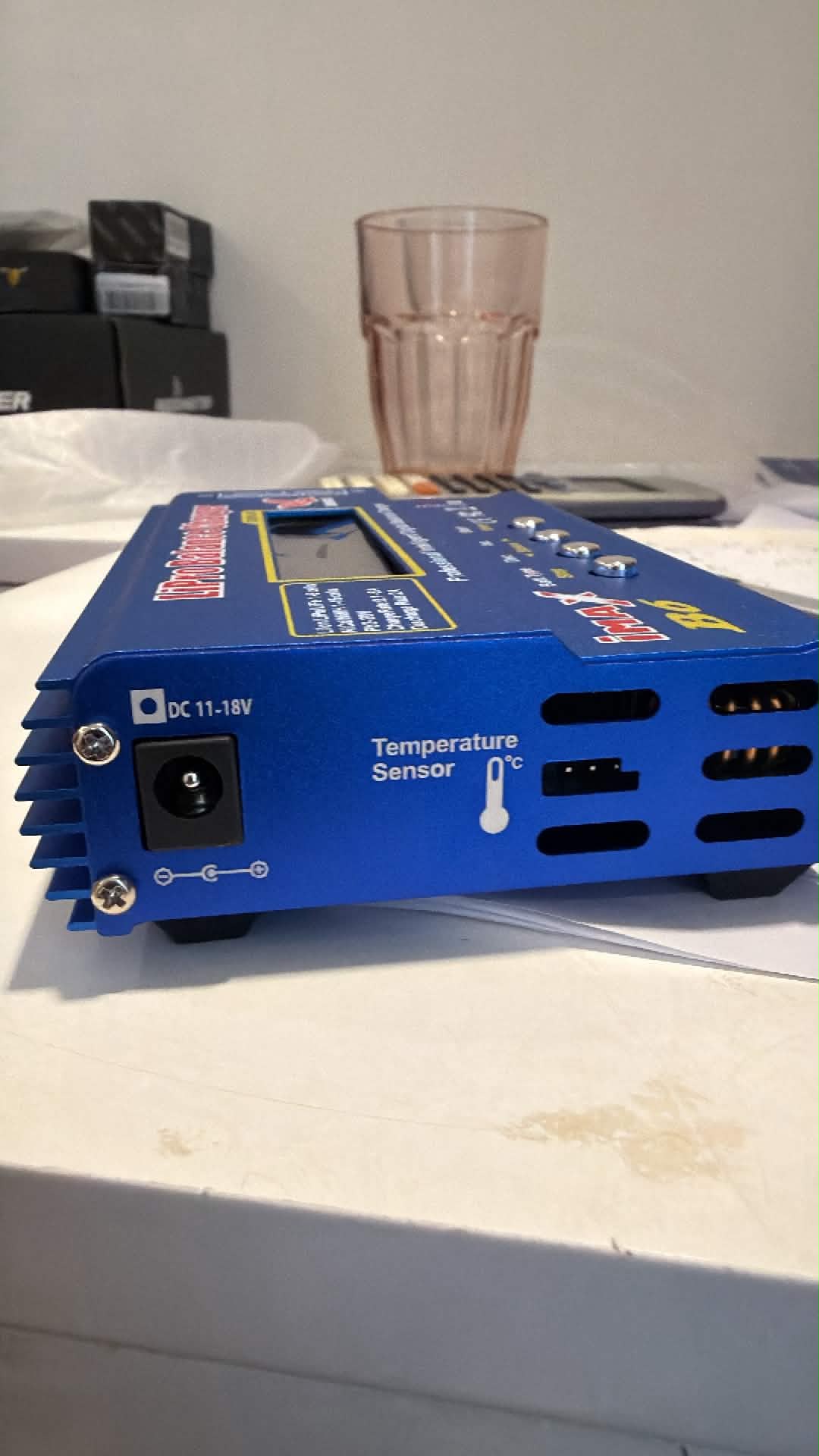

Renunong LiPo Charger

Bo sac pin di kem voi nguon adapter 12V 5A de nap lai he thong. LiPo charging system paired with a 12V 5A adapter for battery recharge.

Charger + 12V 5A Adapter

CTRL_01

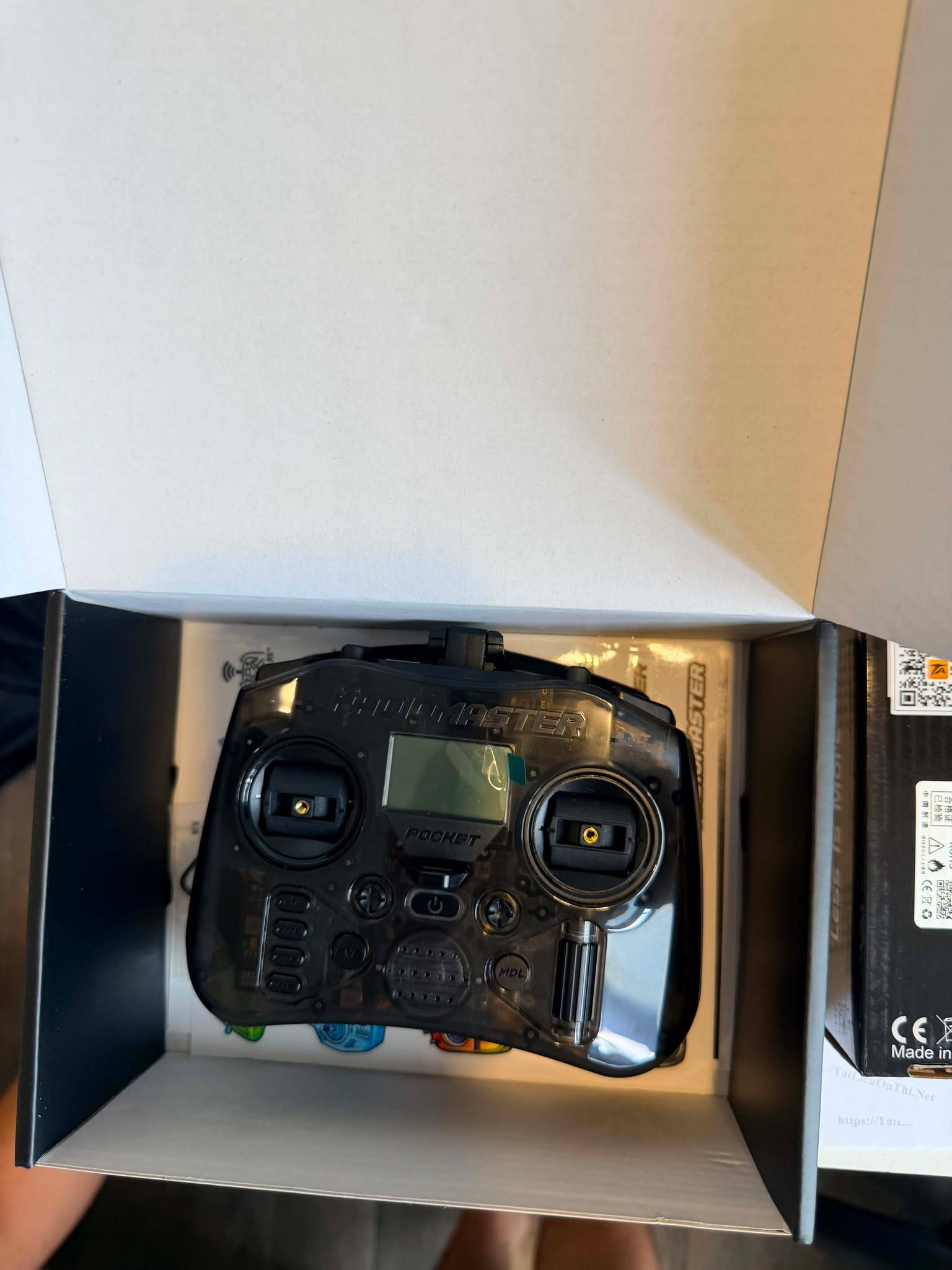

Radiomaster ELRS 2.4GHz

Tay dieu khien chinh cua drone trong qua trinh thu bay va tinh chinh. The main radio transmitter used for testing, flight control, and tuning.

Handheld Controller

VIS_01

Orientation LEDs

Led do o duoi, led xanh la o dau de nhin huong drone ro hon khi bay. Red at the rear and green at the front for fast orientation cues in flight.

Front / Rear Guidance

🛠️ BUILD PROCESS 🛠️ BUILD PROCESS

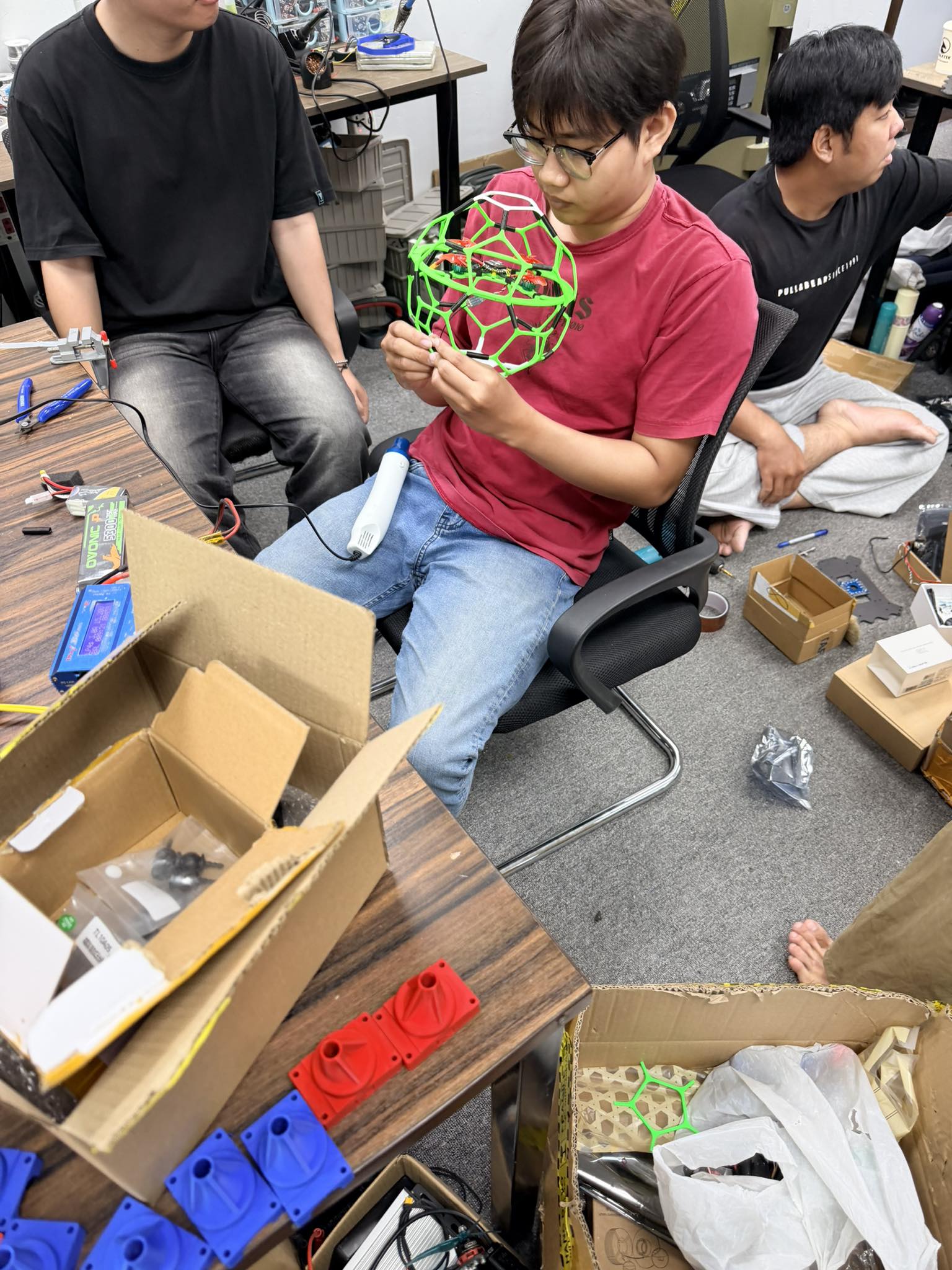

The Cookies team working together on the drone

Chon khung va in 3D Find a Suitable Frame and 3D Print It

Buoc dau la tim kieu khung phu hop tren mang, sau do in khung chinh va bo khung bao ve ben ngoai. The build started by researching a suitable frame online, then 3D printing both the inner structure and the outer protective shell.

Lap mach va bo tri thanh phan Layout the Electronics and Solder the Core

Sau do team set up vi tri cho motor, pin, led, va ang ten, roi han day va co dinh len khung chinh. Next came positioning the motors, battery, LEDs, and antenna, followed by soldering and mounting the electronics onto the main frame.

Gan vo bao ve ben ngoai Install the Outer Soccer Shell

Khung chinh duoc dua vao ben trong vong bao ve va co dinh bang day rut de giam rung va giu on dinh tong the. The inner frame was placed inside the outer shell and secured with zip ties to keep the structure together during testing.

Tune bay bang Betaflight Tune Flight Behavior in Betaflight

Khau cuoi cung la tinh chinh huong bay, do nhay, va do can bang de drone hoat dong on hon truoc khi mang di test. The last phase was Betaflight tuning, especially direction, sensitivity, and balance, so the drone would behave more predictably during test flights.

📝 FIELD NOTES 📝 FIELD NOTES

My Contributions My Contributions

Dan nhom trong viec phan cong va giu huong phat trien cho du an. Led the team and helped keep the project direction organized.
Phu trach tune drone bang Betaflight ve huong, do nhay, va do can bang. Owned Betaflight tuning for direction, sensitivity, and balance.
Ho tro kiem tra lai hanh vi bay sau khi lap rap de co the test an toan hon. Helped verify flight behavior after assembly so testing could be done more safely.

Thuan Loi Advantages

Co nguoi quen trong cong ty drone nen duoc chi dan them ve kien thuc va cach lam drone. We had guidance from someone familiar with the drone industry, so the team could learn the basics faster.
Ap luc ngan sach nhe hon nho co quy chung va cach quan ly chi tieu ro rang. Budget pressure was easier to manage because the team pooled funds and tracked spending together.

Kho Khan Challenges

Dat nham khung va canh tren mang nen mat them thoi gian doi va doi phuong an. Wrong frame and prop purchases online cost the team extra time.
Vit motor khong chac nen co luc bay bi sut, phai thao ra va han lai. Loose motor mounting created failures that had to be repaired and reworked.
Canh 3 inch qua lon, cham vao khung va gay, nen phai doi canh phu hop hon. Early 3-inch props were too large, struck the frame, and broke, so the setup had to be corrected.
Cho lam drone xa va lich thi day nen thieu thoi gian di lai cung nhu tap bay. Travel distance and exam schedules limited both workshop time and flight practice.

TECH STACK SUMMARY TECH STACK SUMMARY

CATEGORY	USED COMPONENTS USED COMPONENTS	PURPOSE PURPOSE
Flight Core	SpeedyBee F405 AIO V2	Bo dieu khien bay va trung tam ket noi he thong. Main flight control and system integration board.
Propulsion	LANNRC 1404 Plus 4600KV, 2.5" prop set	Tao luc day cho bo khung nho gon. Provides thrust for the compact protected airframe.
Control Link	ELRS 2.4GHz receiver, Radiomaster ELRS 2.4GHz	Ket noi dieu khien giua nguoi lai va drone. Maintains the command link between pilot and drone.
Structure	3D-printed main frame, 3D-printed soccer shell	Giu phan cung ben trong va tao lop bao ve va cham. Supports the hardware and adds impact protection.
Power	Tattu 850mAh 3S 75C, Renunong charger, 12V 5A adapter	Cap nguon cho drone va nap lai pin giua cac lan test. Supplies flight power and enables quick recharge between tests.
Calibration	Betaflight, LED orientation setup	Tinh chinh huong, do nhay, do can bang va kha nang nhan dien huong bay. Tunes direction, sensitivity, balance, and front/rear flight orientation.
